UL KEMA 50Hz 690V LB Low Power 50Hz 690V Low Voltage Busway

Brand Name : WETOWN

Model Number : LB

Certification : UL,KEMA,ASTA,CE,GOST-R,CEDIT,TUV

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiable

Packaging Details : Standard package

Delivery Time : 20 working days after confirmation of all technical data and advance payment

Supply Ability : 300 Pieces per Month

Conductor Type : Cu/AI

Rated Current : 100-400A

IP : IP40/IP42

Product Series : LB low power

Design Criteria : IEC61439-1；IEC61439-6；GB/T7251.1；GB/T7251.6；IEC 60529

Product Type : Low Voltage Busway

system : 3P4W/3P5W

Contact Now

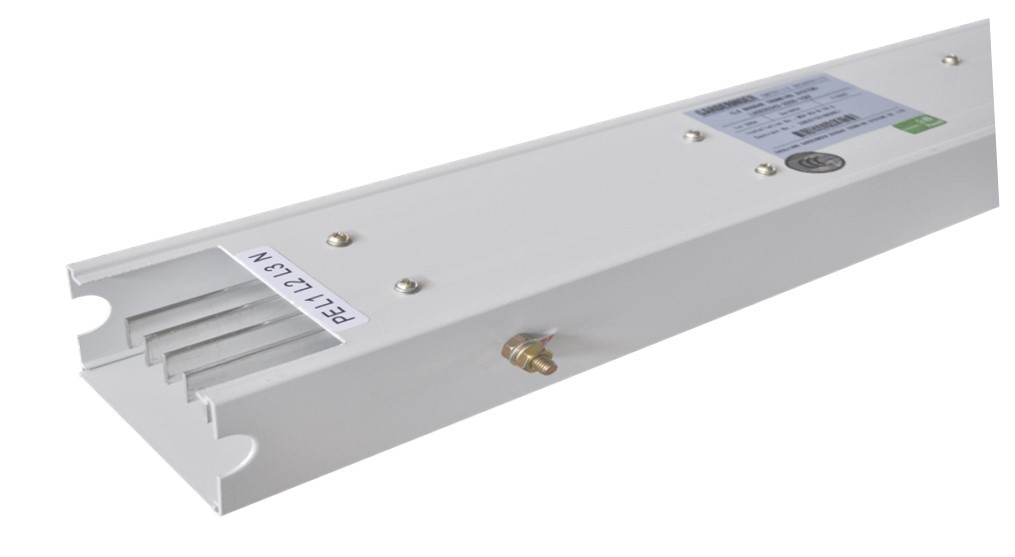

    LB Low Power Busway , 50Hz , 60Hz , 690V



    LB Low Power Busway is applicated to the power supply of fluorescent lamps, mercury lamps and other lighting equipment in shopping malls, supermarkets, underground garages and other places.



    LB low power air insulated busbar system is a new type closed power transmission system, easy for installation and utility,  applicable for small & medium power distribution such as supermarket, shopping malls.



Code Current (A) Height H(mm)
LVC LVA
2 250 / 103
4 400 103 113
6 630 103 128
8 800 113 143
10 1000 128 168
12 1250 153 203
16 1600 183 242
20 2000 223 303
25 2500 273 392
32 3200 352 472
40 4000 432 592
50 5000 532 /
63 6300 701 /



    Why Choose Wetown:

  • Low impedance,Low line loss.
  • Small size,save space.
  • There's enough clearance between bars fast heat dissipation and low temperaturerise.
  • Adopt air insulated,safe and reliable.
